OASE ProfiClear Premium XL Discharge Module Gravitation
OASE ProfiClear Premium XL Discharge Module Gravitation The delivery time is approximately 10-14 working days.
Couldn't load pickup availability
Application recommendation
Application recommendation
For gravity-fed ProfiClear Premium XL filter systems. For the integration of compatible AquaMax Eco Expert or AquaMax Eco Titanium filter pumps as well as Bitron Premium UVC clarifiers.
Processing Time & Shipping
Processing Time & Shipping
Processing time & shipping
Orders are generally processed within 1 business day and subsequently handed over directly to DHL

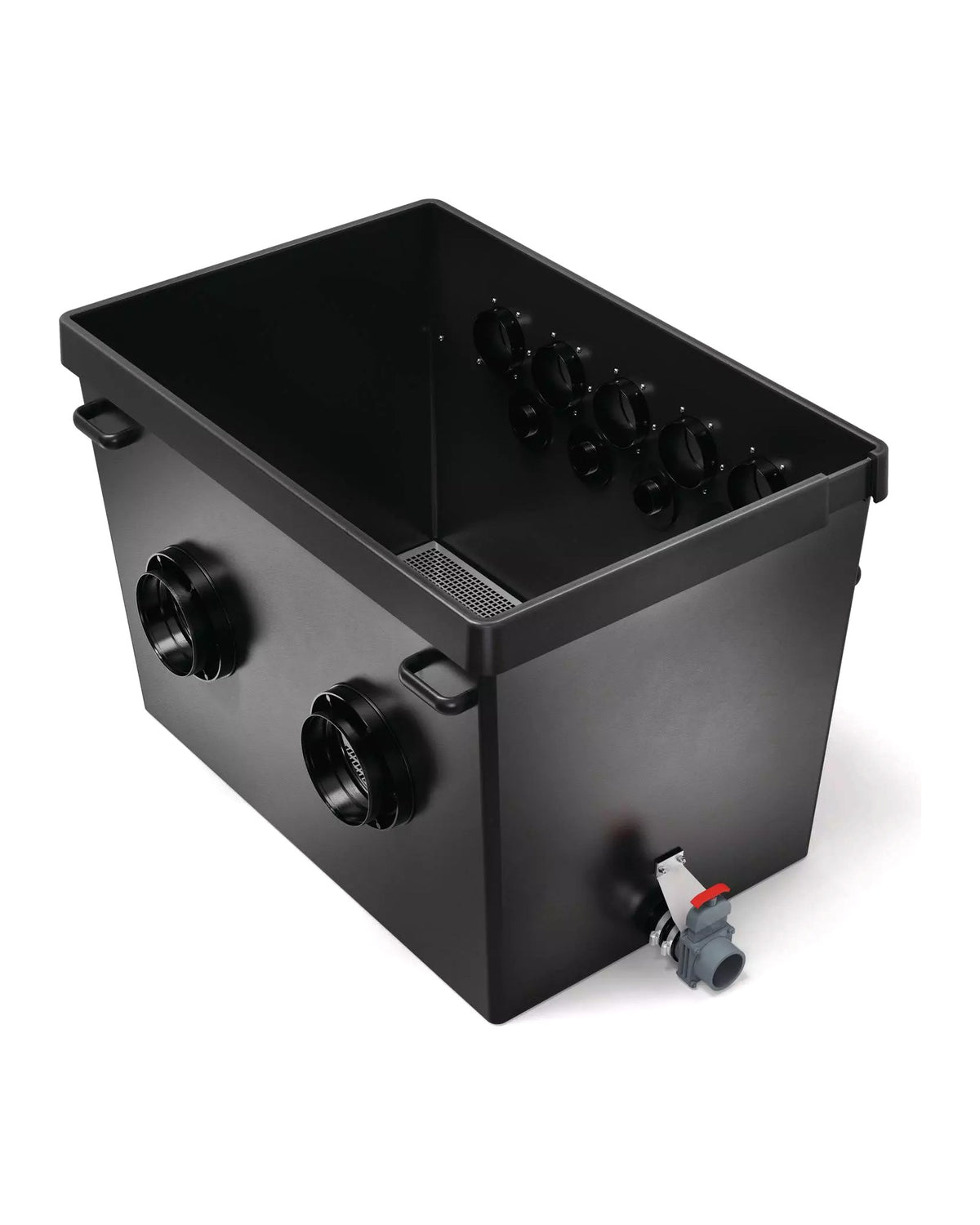

OASE ProfiClear Premium XL Discharge Module Gravity
The OASE ProfiClear Premium XL Discharge Module Gravity complements professional, gravity-fed pond filter systems. The enlarged pump and UVC chamber allows for the integration of compatible filter pumps and UVC clarifiers. Five DN 110 outlets and four 2-inch Tradux bushings provide flexible connection options. An integrated floor drain with slide valve facilitates cleaning and maintenance. The robust module achieves a water flow rate of up to 66,000 l/h. It is particularly suitable for large koi, natural, and swimming ponds.
Suitable for
🐟 For large and demanding koi ponds
🏊 For large natural and swimming ponds

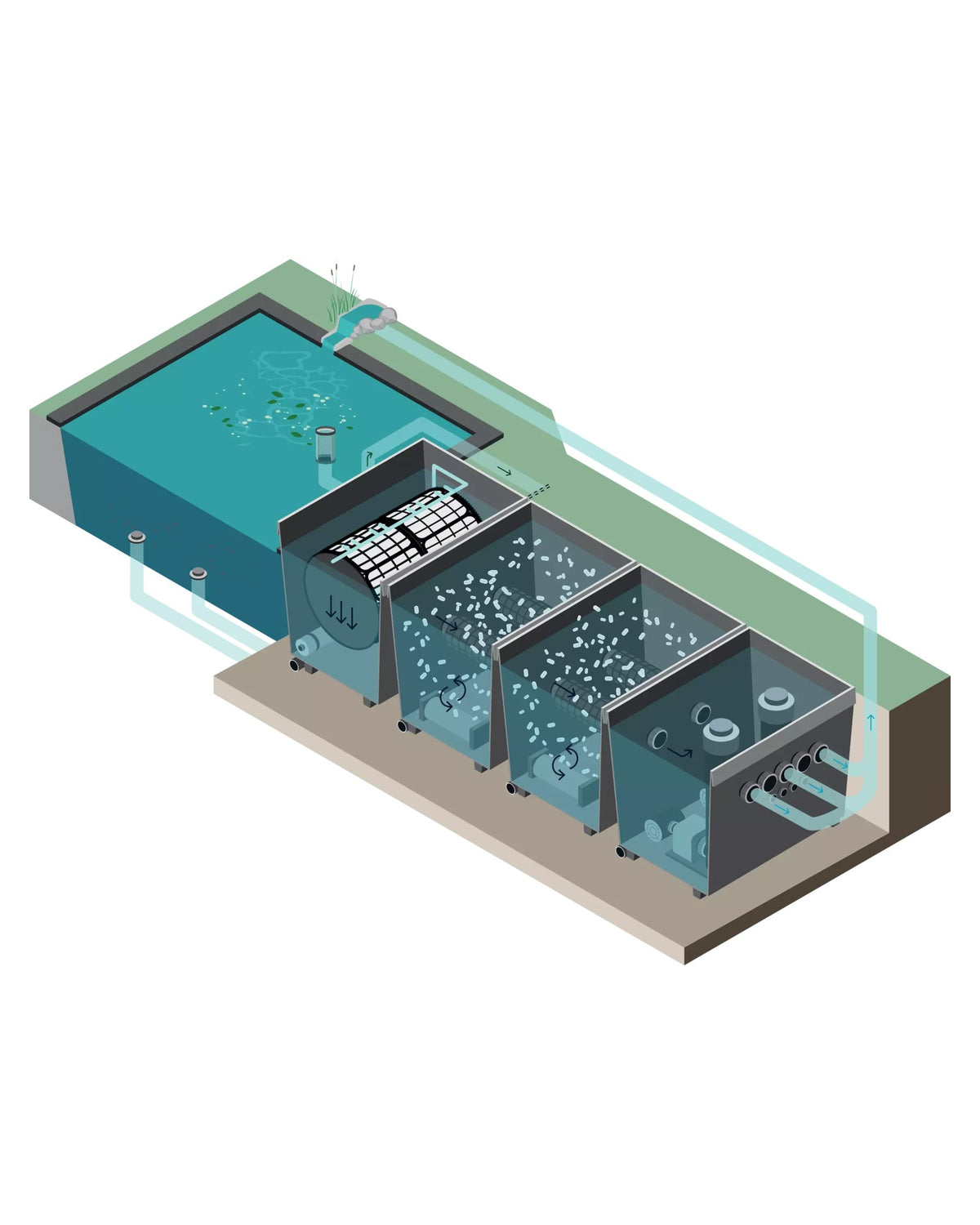

💧 For gravity-fed ProfiClear Premium XL systems

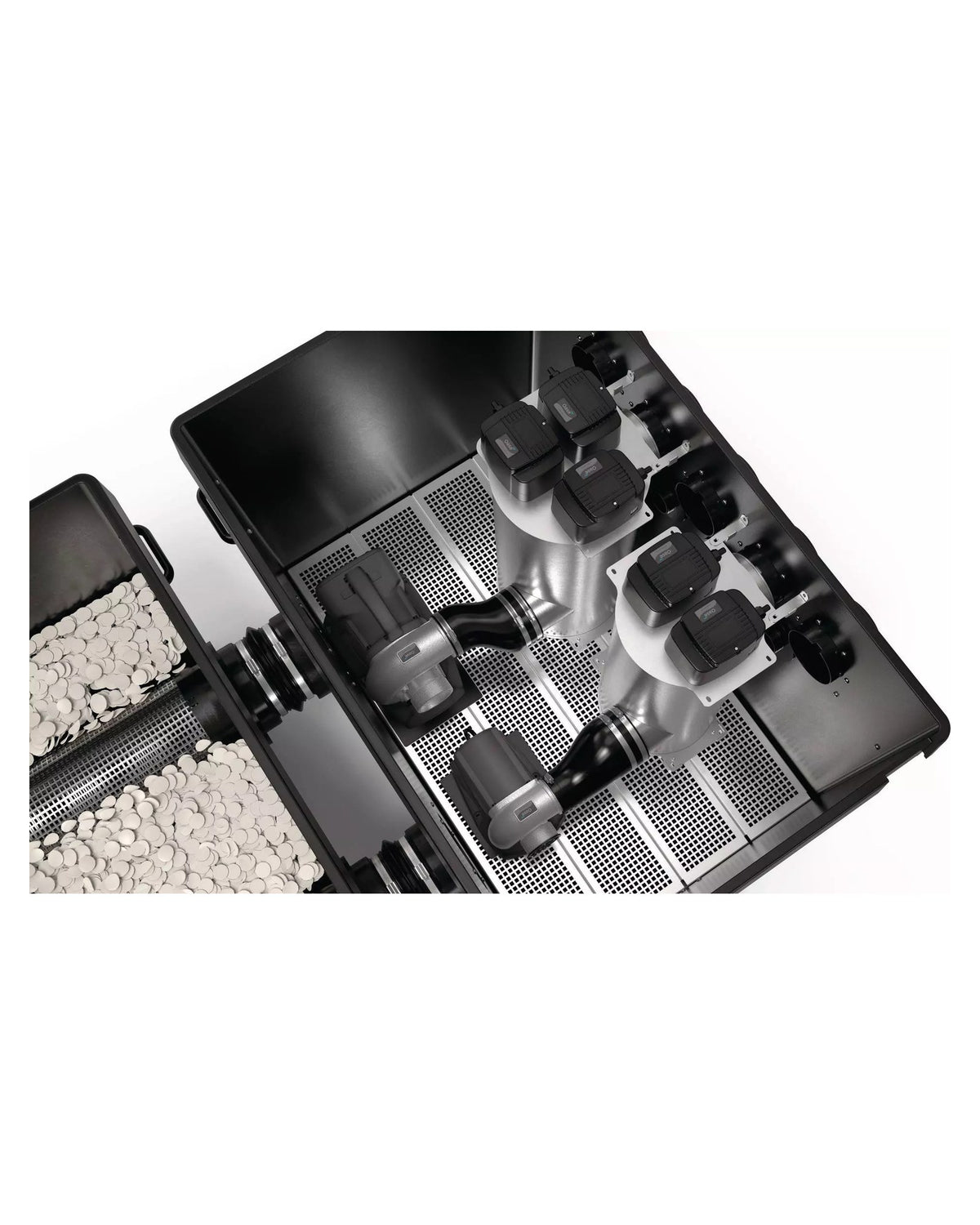

⚙️ For AquaMax Eco Expert and AquaMax Eco Titanium pumps
🔆 For the integration of Bitron Premium UVC devices

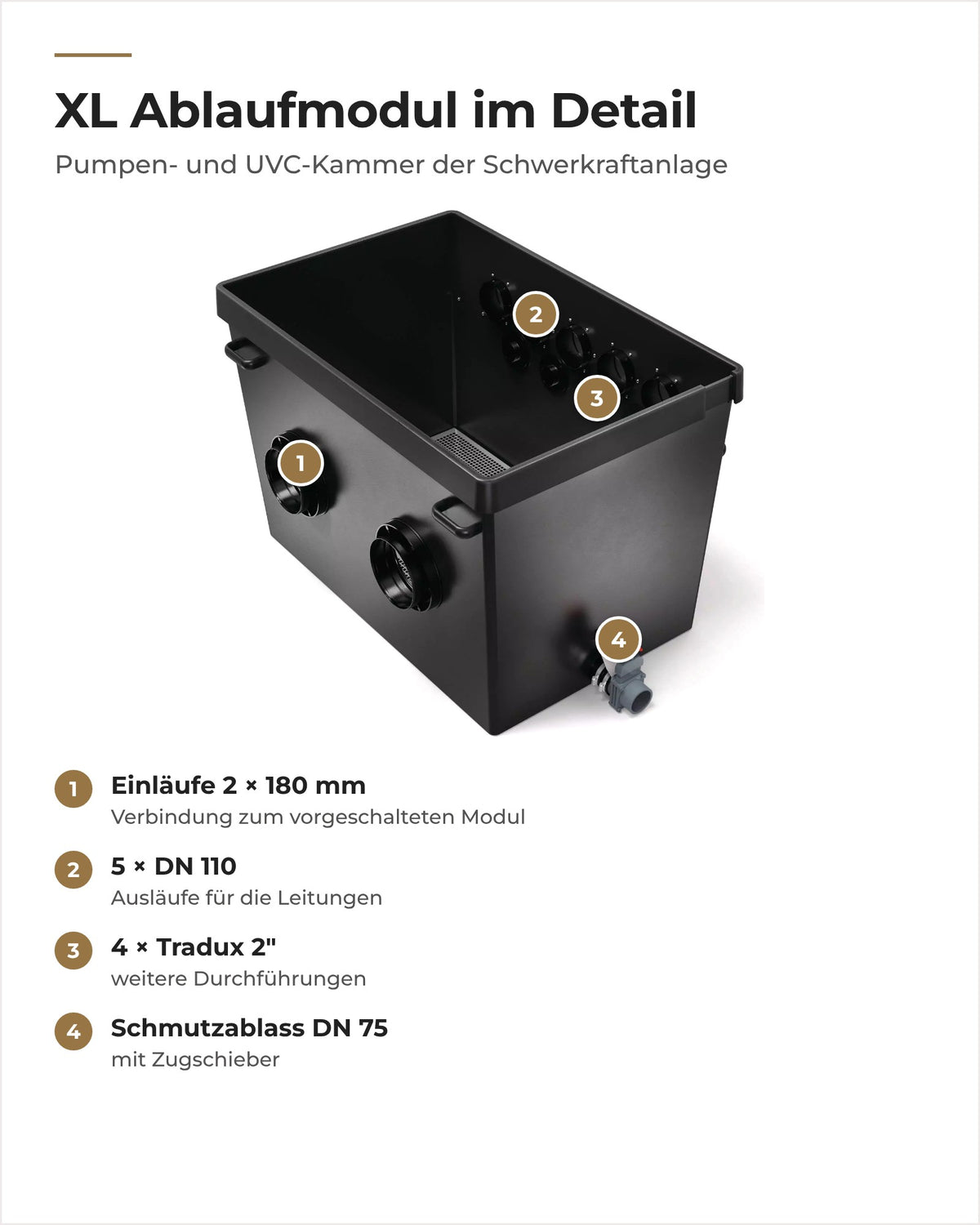

Benefits at a glance
- Enlarged pump and UVC chamber

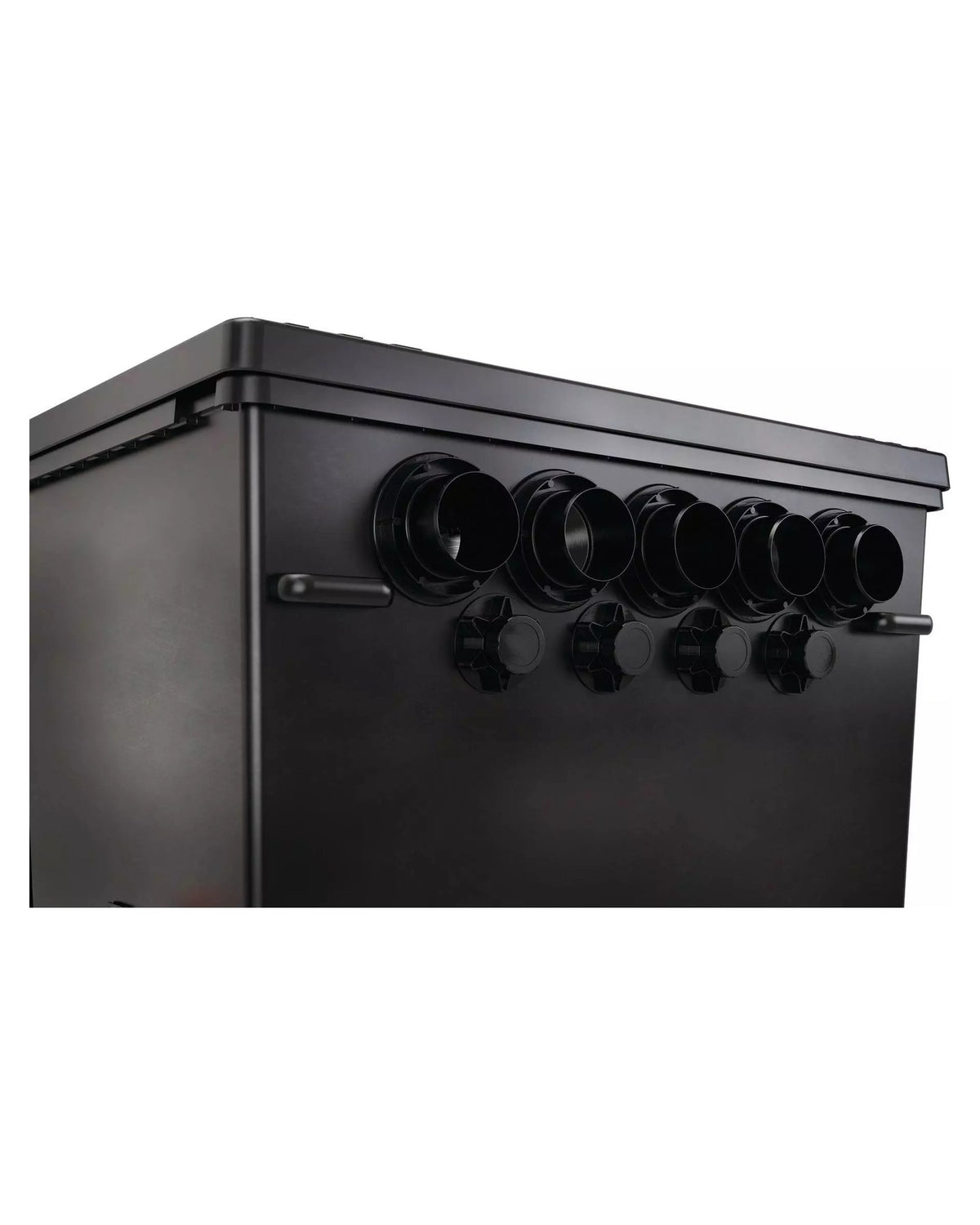

- Five flexible DN 110 outlets
- Four 2-inch Tradux bushings
- Integrated floor drain with slide valve
- Water flow rate up to 66,000 l/h
- Flexible adjustment of the modular filter system
- Robust construction made of GRP duroplast and stainless steel
- Professional quality – Made in Germany

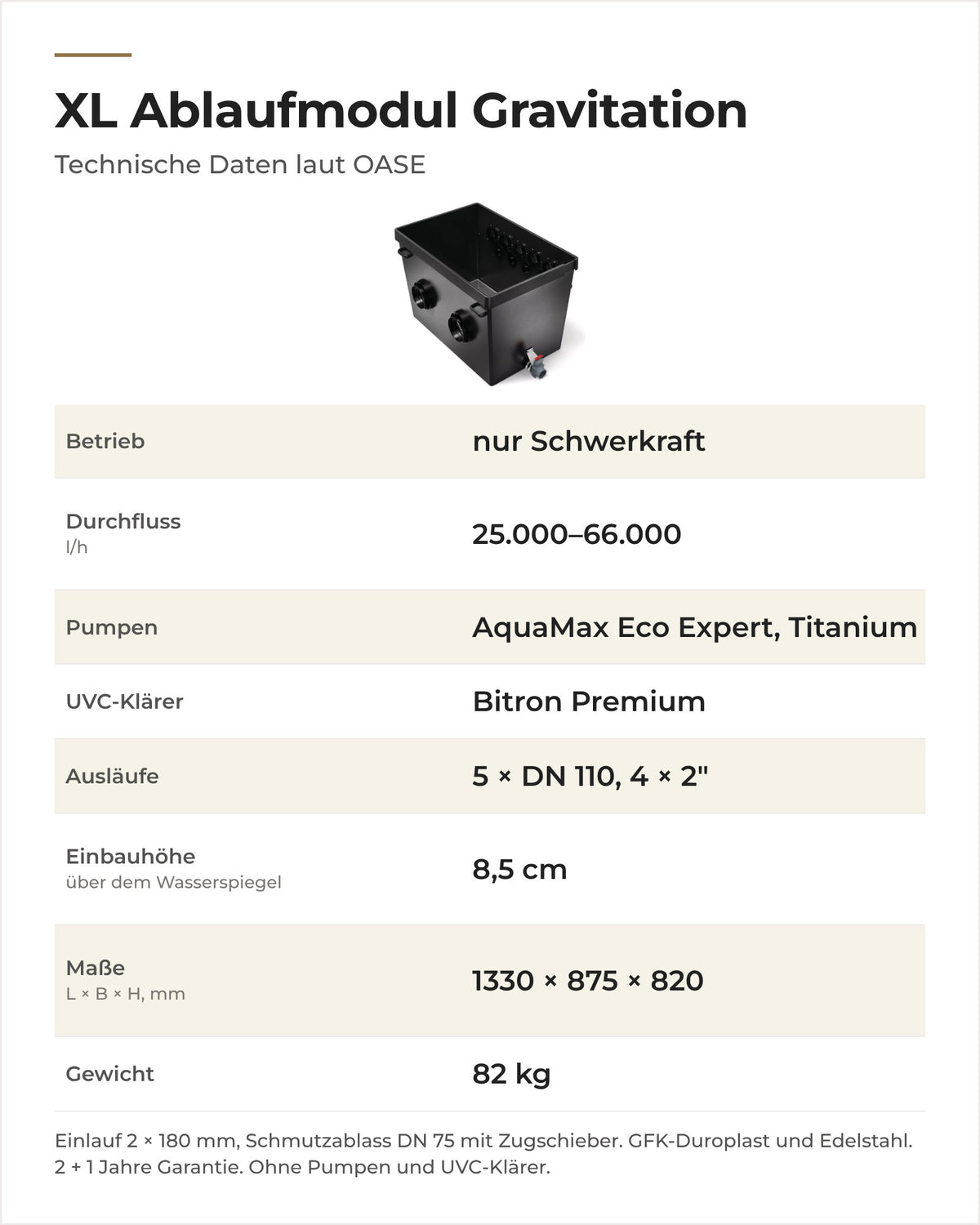

Technical data
| Dimensions (L x W x H) - mm (calculated) | 1330 × 875 × 820 |
| Inlet connections | 180 mm |
| Material | GRP Duroplast/Stainless steel |
| Guarantee (+ request guarantee) - years | 2 + 1 |
| Liters per hour max. | 66000 |
| Outlet connections | 4 × 2” / 5 × DN 110 |
| Waste outlet connections | DN 75 |
| Suitable for ponds up to max. - m³ | 530.0 |
| Suitable for ponds with fish stock - m³ | 265.0 |
| Suitable for ponds with koi - m³ | 100.0 |
| Number of outlets - units | 9 |
| Number of inlets - units | 2 |
| Temperature display | No |
| Liters per hour min. | 25000 |
| Other | – |

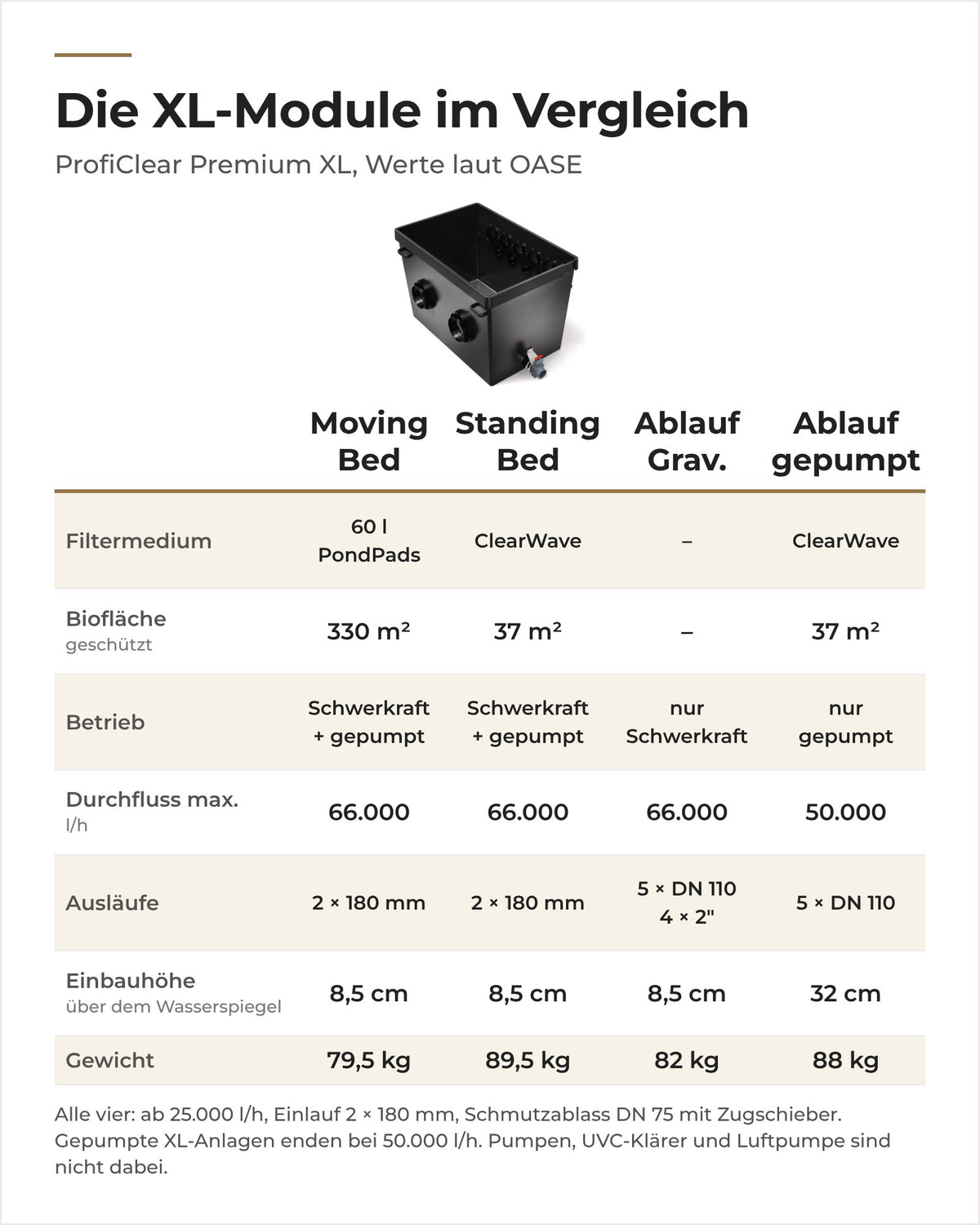

| Connection to | Bitron Premium, ProfiClear Premium TF-XL Gravity, ProfiClear Premium XL Moving Bed |
| Installation height above water level - cm | 8.5 |
| Type of use | Gravity |
| Type of use | Gravity |
| Inlet connections - mm | 180 |
| OASE Control capable | No |
| European Article Number (EAN) | 4010052733685 |
| Net weight - kg | 82.00 |
| Market segment | OASE Pro |
Item number : 73368
