ProfiClear Premium Compact-L Pumped OC
ProfiClear Premium Compact-L Pumped OC The delivery time is approximately 10-14 business days.
Couldn't load pickup availability
Application recommendation
Application recommendation

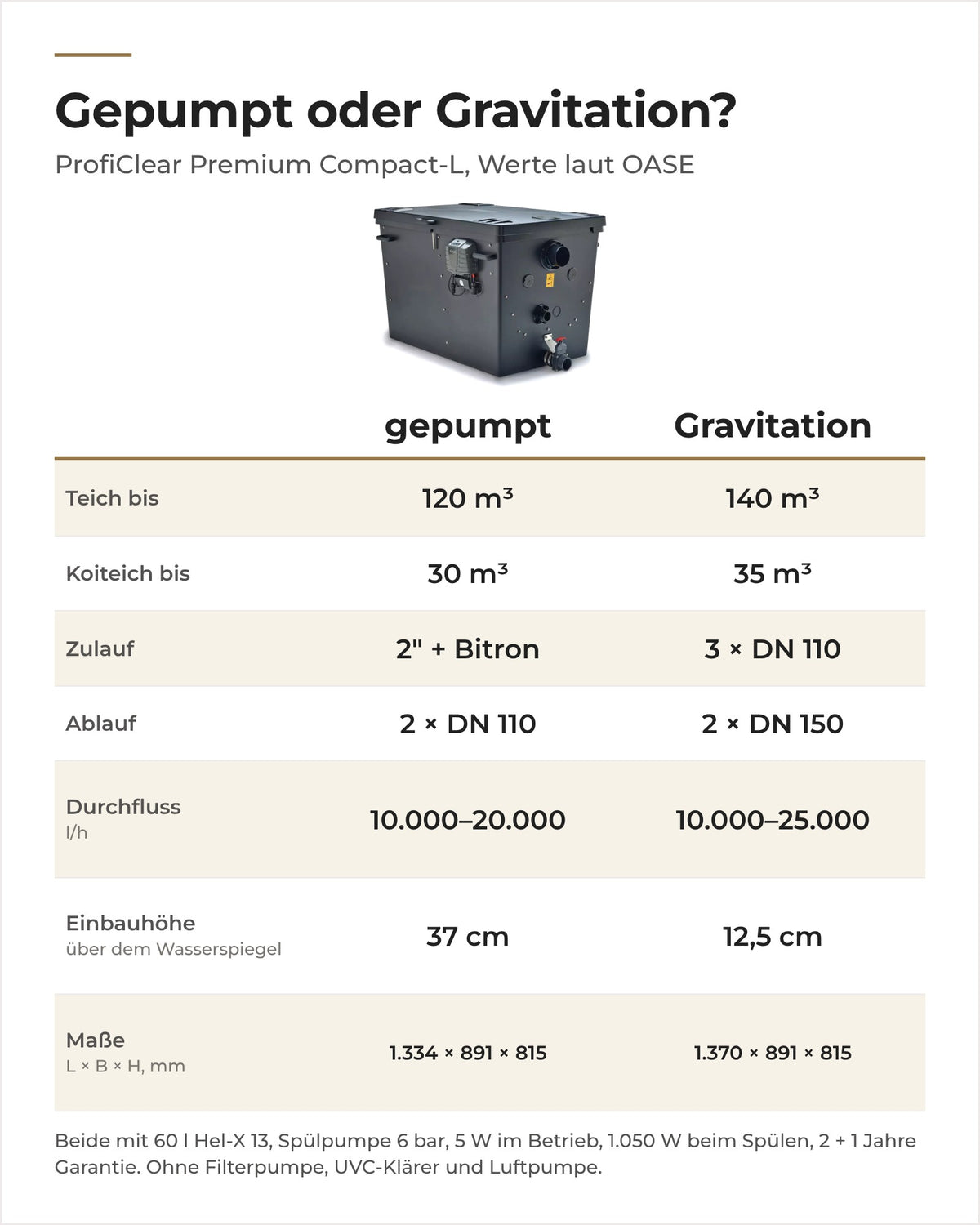

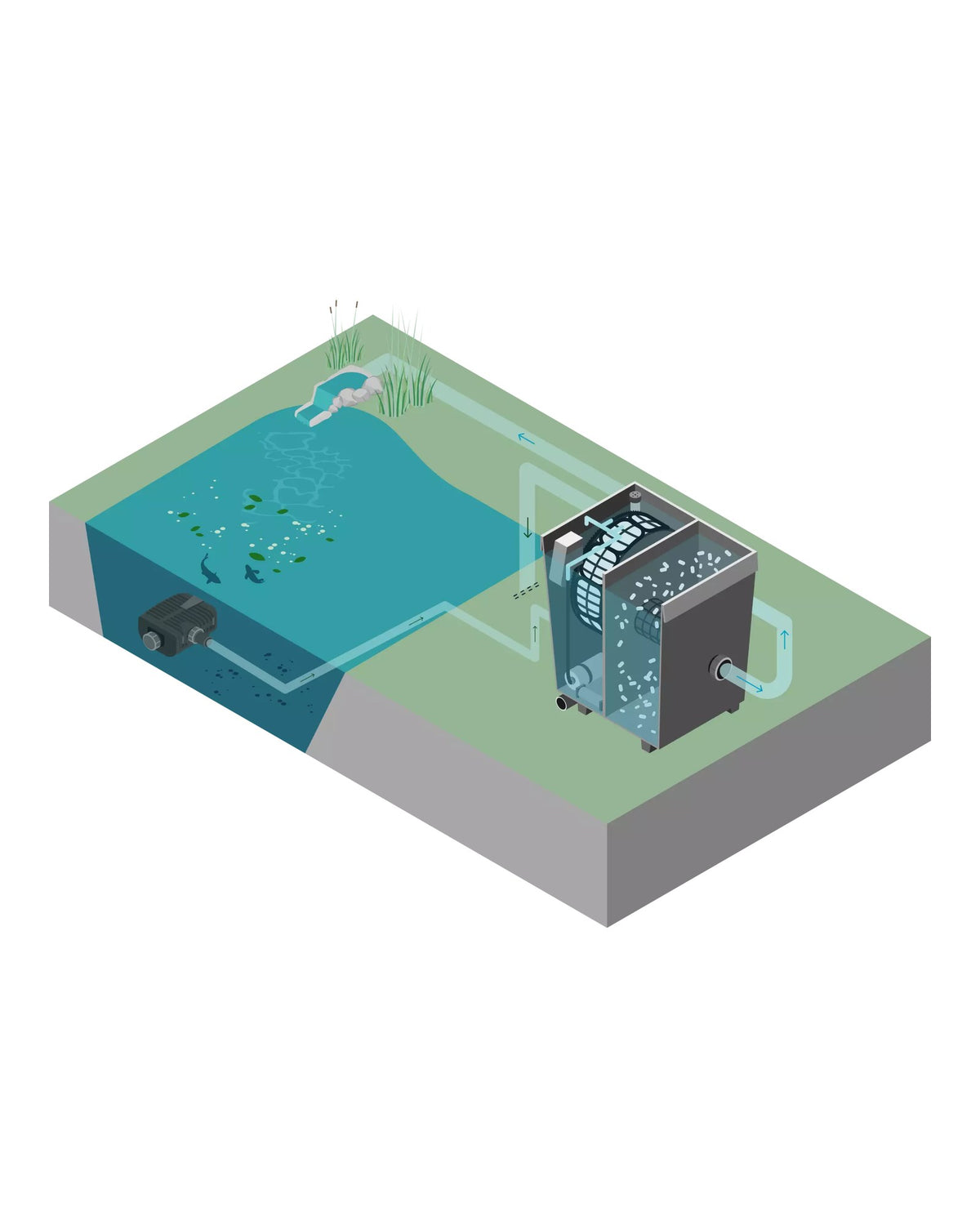

Laut OASE für Teiche bis 120 m³ und Koiteiche bis 30 m³, ohne Bodenablauf. Eine Pumpe im Teich fördert 10.000 bis 20.000 l/h in den Filter, das Wasser läuft im Freigefälle zurück. Mit Bodenabläufen passt der Compact-L Gravitation.
Processing Time & Shipping
Processing Time & Shipping
Processing time & shipping
Orders are generally processed within 1 business day and subsequently handed over directly to DHL

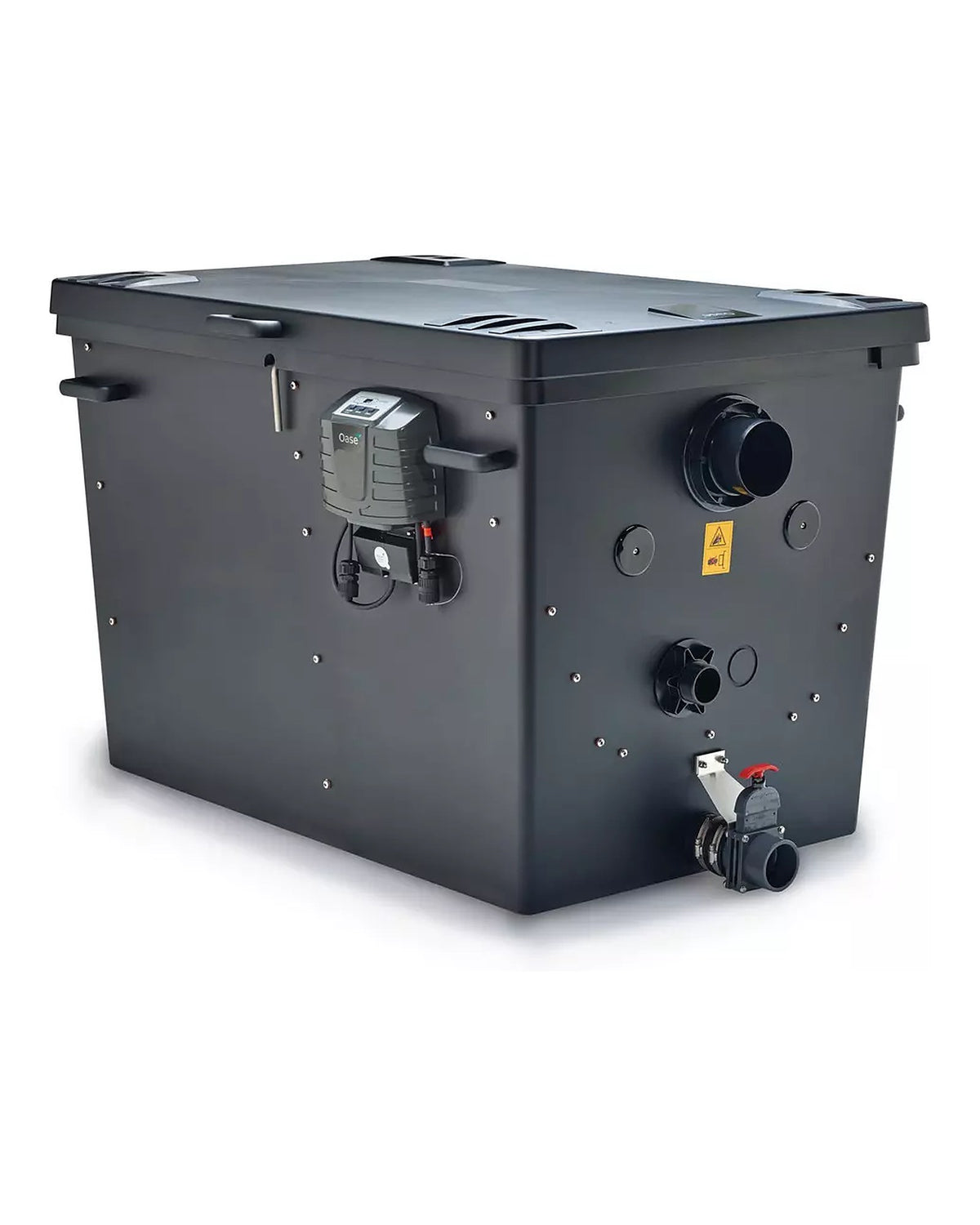

ProfiClear Premium Compact-L Pumped OC Drum Filter

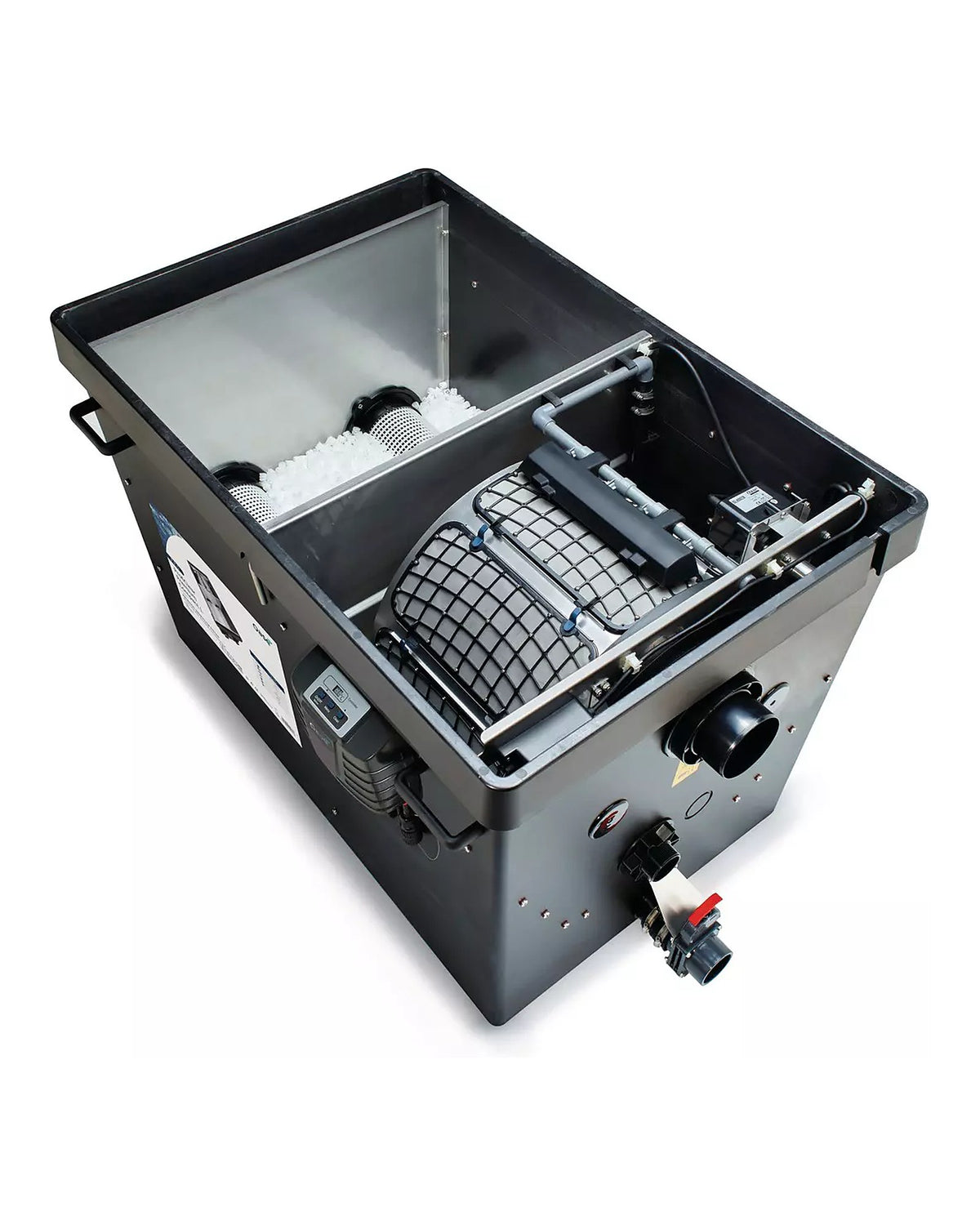

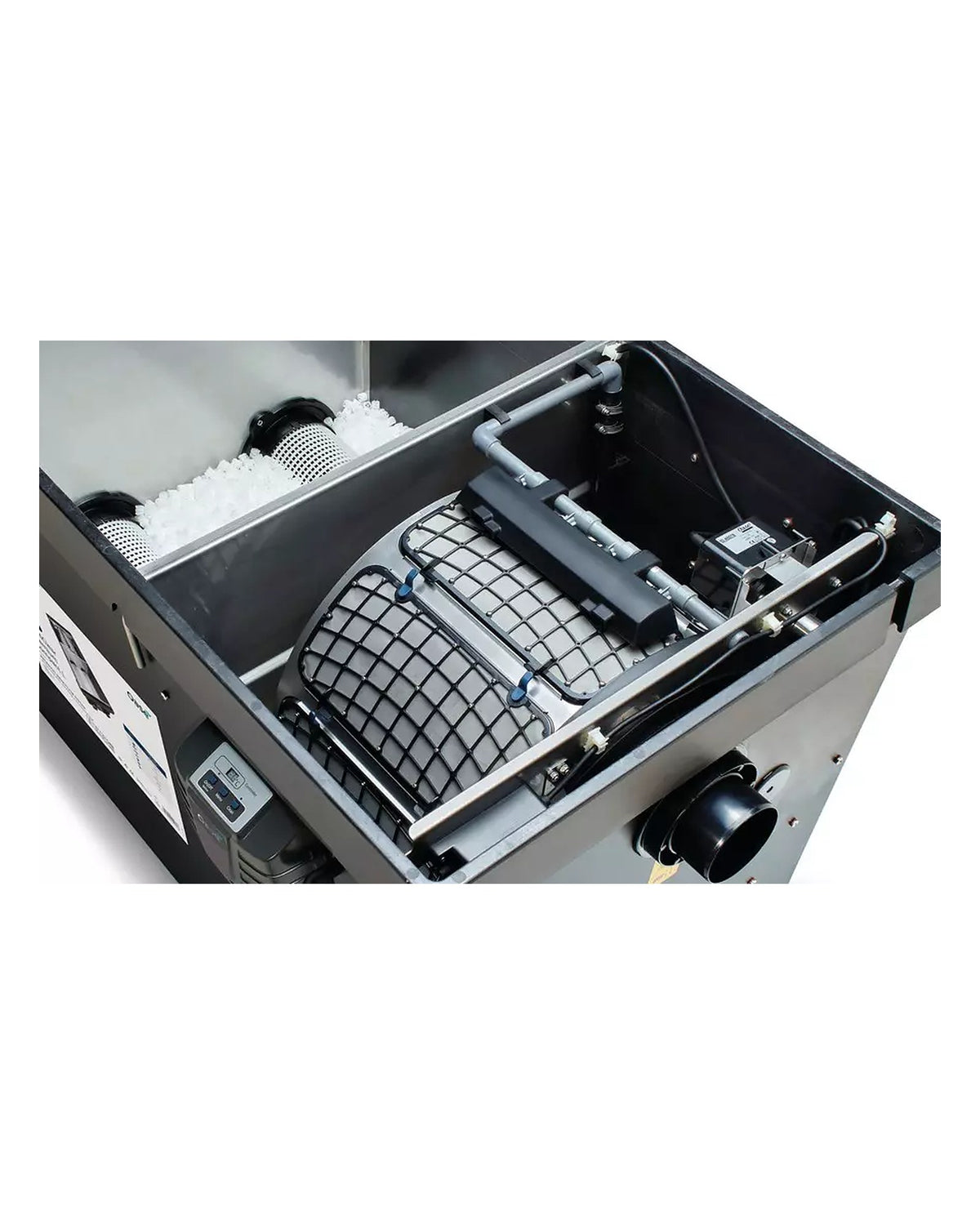

The ProfiClear Premium Compact-L Pumped OC is a high-performance compact drum filter for ponds up to 120 m³. It is suitable for fish ponds up to 60 m³ and koi ponds up to 30 m³. With a coarse debris separation of 60 µm, automatic rinsing, and 60 liters of Hel-X 13
biomedium, the system ensures clear water and reliable biological filtration. The robust housing made of GRP Duroplast and stainless steel is designed for long-lasting use in the professional pond sector. Thanks to OASE Control, the system is conveniently controllable and ideal for modern pond setups.
Who is it suitable for?
🐟 For koi ponds up to 30 m³
🐠 For fish ponds up to 60 m³
💧 For ponds up to 120 m³
⚙️ For pond owners with high demands for automatic cleaning
📱 For users of modern OASE Control pond technology
Advantages at a glance
- Compact drum filter for pumped pond systems
- Maximum water flow up to 20,000 l/h
- Fine coarse debris separation down to 60 µm
- Includes 60 l Hel-X 13 biomedium
- Pre-installed aeration for biological filter performance
- Automatic rinsing via sensor, time interval, or manual
- Digital display for temperature
- OASE Control capable
- Robust material made of GRP Duroplast and stainless steel
| Dimensions (L x W x H) - mm (calculated) | 1334 × 891 × 815 |
| Inlet connections | 1 × 2" + Bitron |
| Material | GRP Duroplast/Stainless steel |
| Power consumption - W | 5 |
| Guarantee (+ request guarantee) - years | 2 + 1 |
| Liters per hour max. | 20000 |

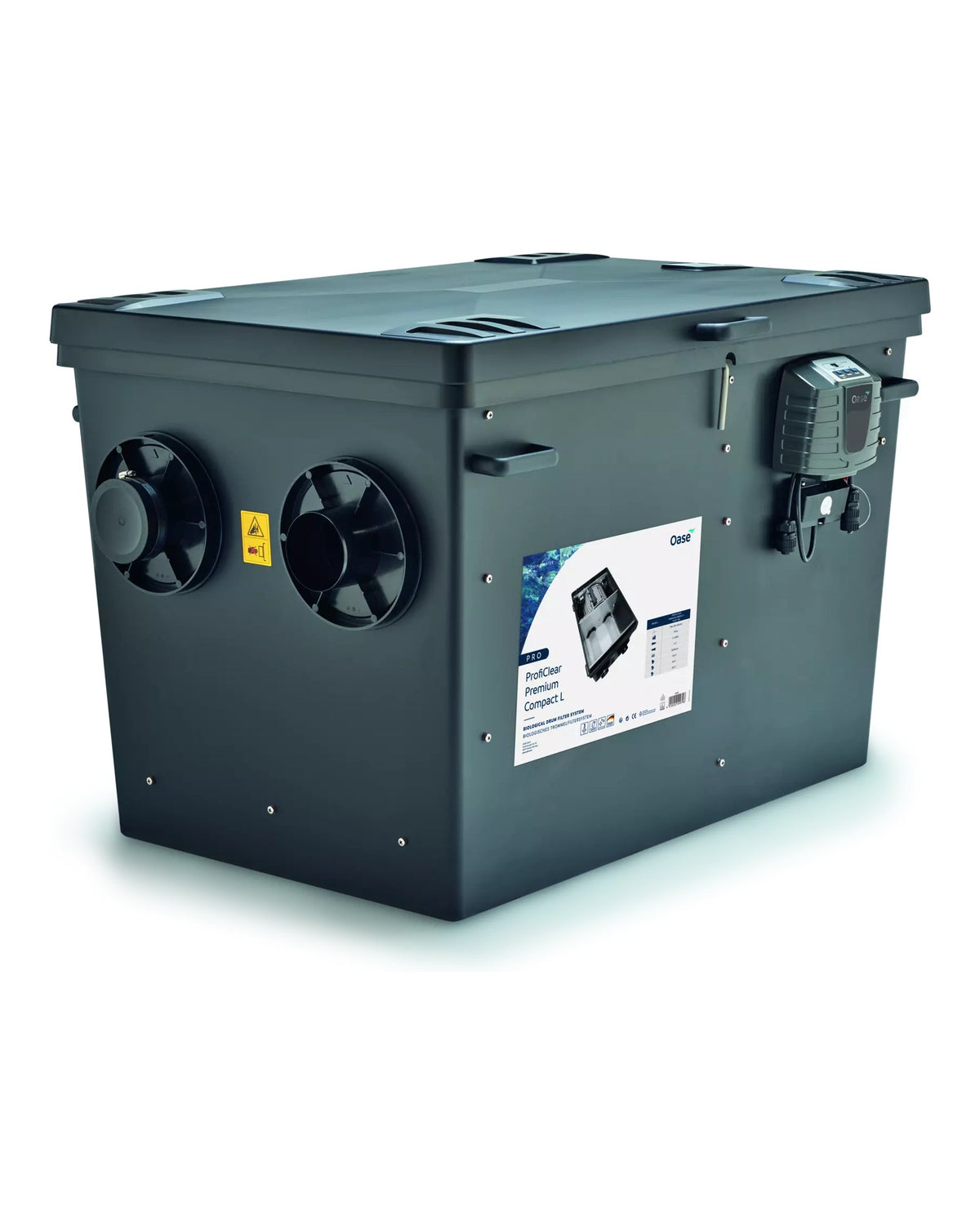

| Outlet connections | DN 110 |
| Waste outlet connections | DN 75, DN 110 |
| Coarse debris separation - micrometers | 60 |
| Suitable for ponds up to max. - m³ | 120.0 |
| Suitable for ponds with fish stock - m³ | 60.0 |
| Suitable for ponds with koi - m³ | 30.0 |
| Biological filter surface - m² | 57.3 |
| Number of outlets - PC | 2 |
| Number of inlets - PC | 2 |
| Temperature display | Digital |
| Liters per hour min. | 10000 |
| Other | Aeration pre-installed<br />incl. 60l Hel-X 13 biomedium |
| Connection to | AquaOxy 2500 |

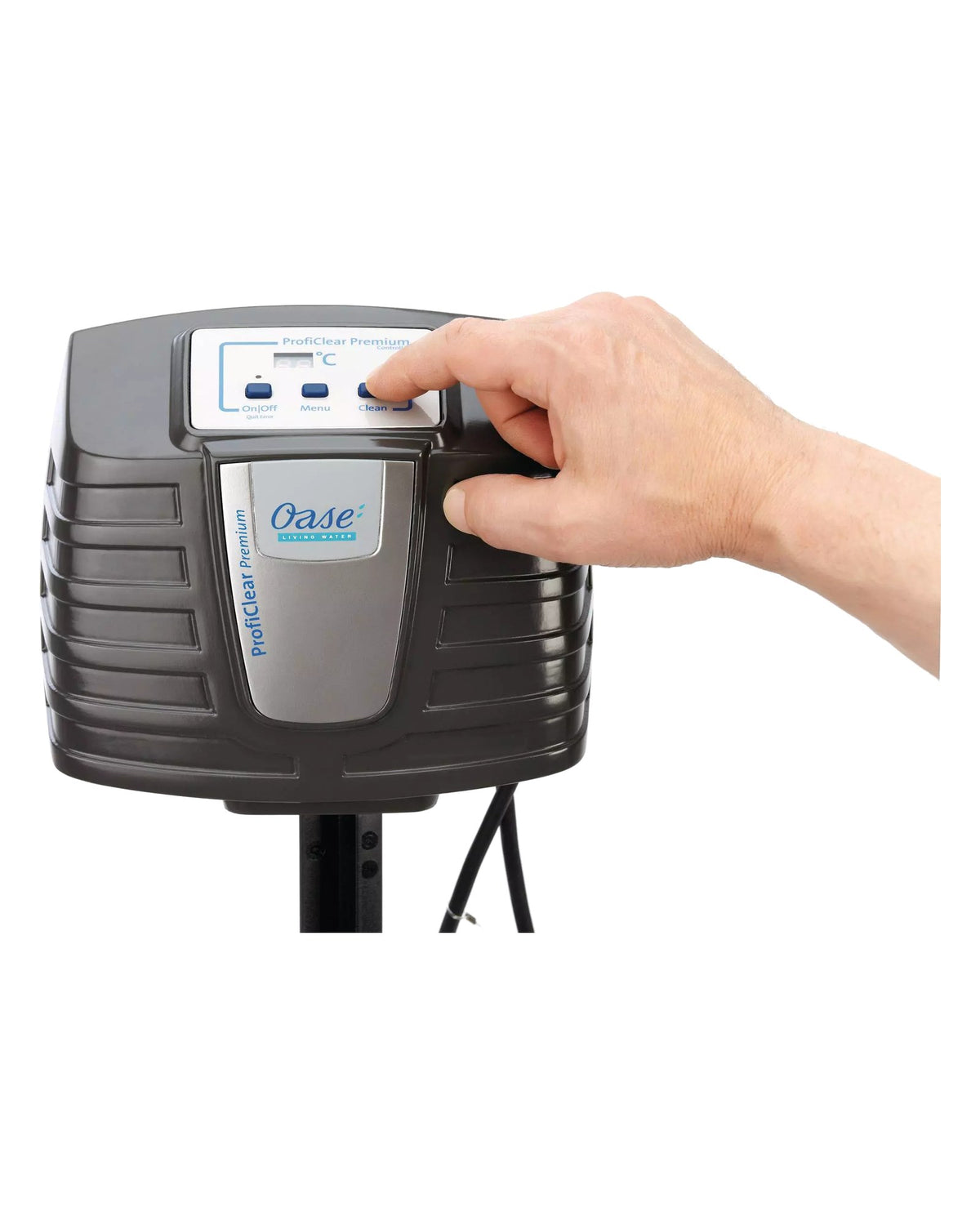

| Control unit | Microcontroller |
| Biological filter surface protected - m² | 48.4 |
| Installation height above water level - cm | 37.0 |
| Type of use | Pump system |
| Type of use | Pump system |
| Automatic rinsing | manual, sensor, time interval |
| Rinsing pump | 6 bar |
| Number of nozzles / rinsing volume | 4 × 2.5 l/min |
| Power consumption cleaning - W | 1050 |
| Rinsing channel connection | DN 110 |
| Inlet connections - mm | 50 |
| OASE Control capable | Yes |
| Cable length - m (cable length primary control + power cable length) (calculated) | 5.00 + 1.00 |
| European Article Number (EAN) | 4010052499796 |
| Net weight - kg | 131.00 |
| Sales market | OASE Pro |
| Nominal voltage + frequency (calculated) | 230 V / 50 Hz |
Item number: 49979
