OASE ProfiClear Premium XL TF-XL Pumped OC
OASE ProfiClear Premium XL TF-XL Pumped OC The delivery time is approximately 10-14 working days.
Couldn't load pickup availability
Application recommendation
Application recommendation
For pumped filter systems in large natural ponds, swimming ponds, and koi ponds. Suitable for natural and swimming ponds up to 530 m³ and koi ponds up to 100 m³ within a suitably configured ProfiClear Premium XL filter system.
Processing Time & Shipping
Processing Time & Shipping
Processing time & shipping
Orders are generally processed within 1 business day and subsequently handed over directly to DHL

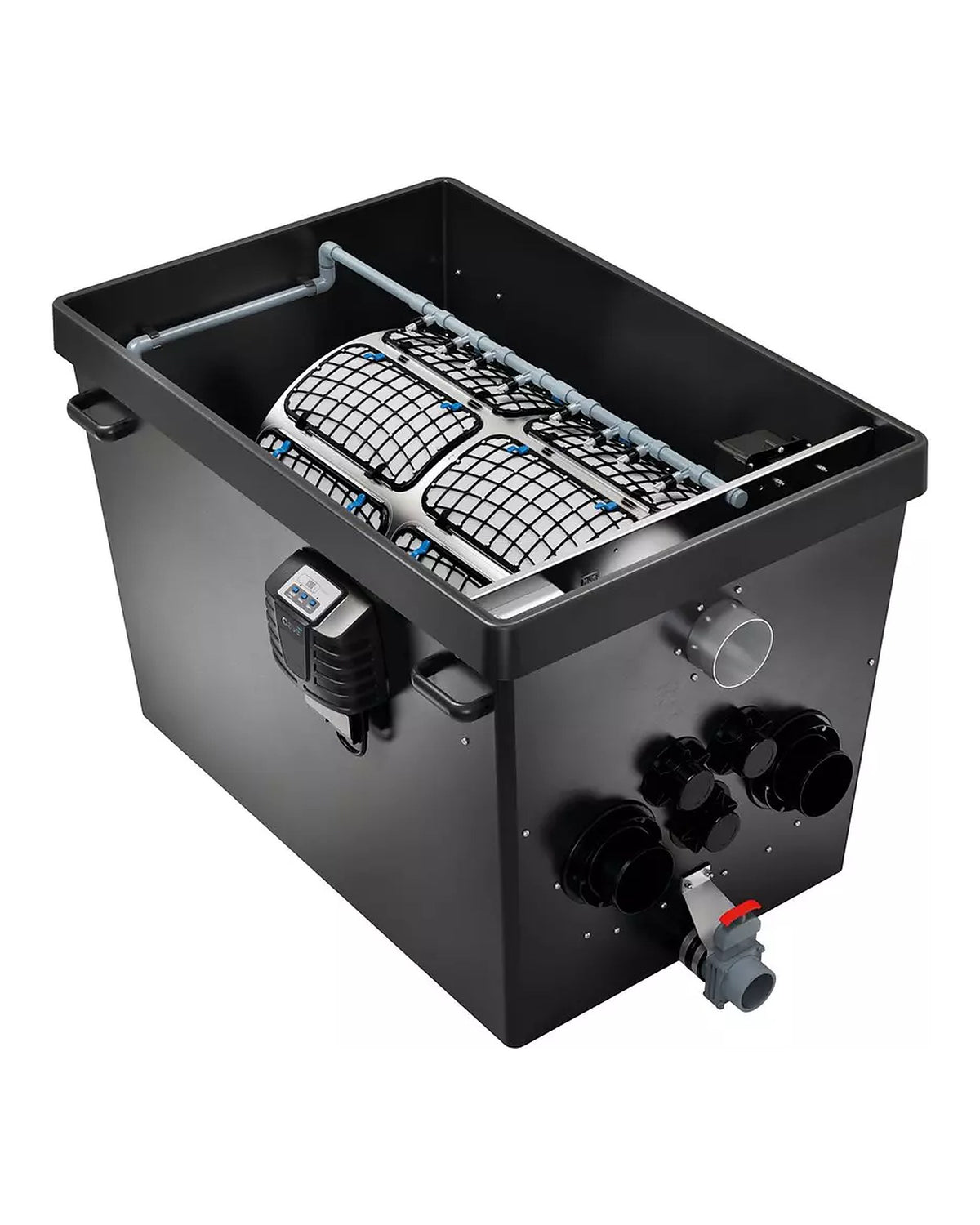

OASE ProfiClear Premium TF-XL Pumped OC – Drum Filter up to 100 m³
The OASE ProfiClear Premium TF-XL Pumped OC is a high-performance, self-cleaning drum filter for large and demanding pond systems. Within an appropriately configured ProfiClear Premium XL filter system, it is suitable for natural and swimming ponds up to 530 m³ as well as koi ponds up to 100 m³.
The drum filter achieves a maximum water flow rate of 50,000 liters per hour and reliably removes dirt particles down to a size of 60 µm from the pond water. The intelligent self-cleaning system ensures convenient, low-maintenance operation. Cleaning can be triggered automatically via a sensor, according to a time interval, or manually.
The pumped drum filter module features an integrated emergency overflow and is designed for permanently safe operation. By integrating it into the OASE Control system, settings can be conveniently monitored and controlled via app. The filter system can be combined modularly with other components of the ProfiClear Premium XL series and individually adapted to the respective pond system.
Suitable for
🐟 Koi pond owners with ponds up to 100 m³
🌿 Operators of large natural and swimming ponds up to 530 m³
💧 Users with a pumped filter system
⚙️ Operators of powerful and heavily loaded pond systems
🏡 Professional pond builders and demanding pond owners
📱 Users of convenient control via OASE Control
Advantages at a glance
- Self-cleaning drum filter with automatic rinsing
- Reliable dirt separation down to 60 µm
- Maximum water flow of 50,000 l/h
- Suitable for koi ponds up to 100 m³ in the ProfiClear Premium XL system
- Suitable for natural and swimming ponds up to 530 m³
- Integrated emergency overflow for safe operation
- Powerful 7-bar rinsing pump
- Rinsing can be triggered by sensor, time interval, or manually

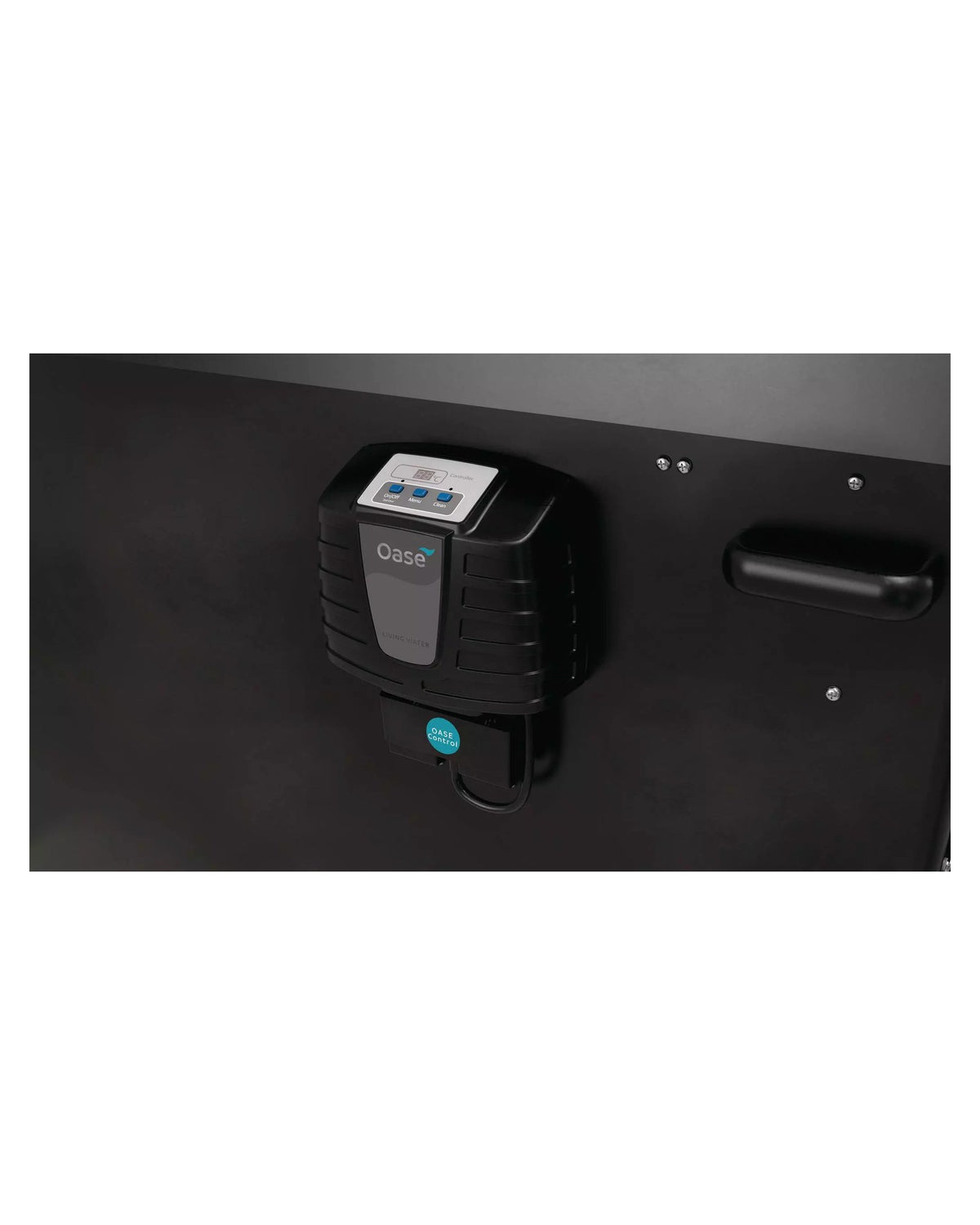

- OASE Control-compatible and conveniently controllable via app
- Digital temperature display

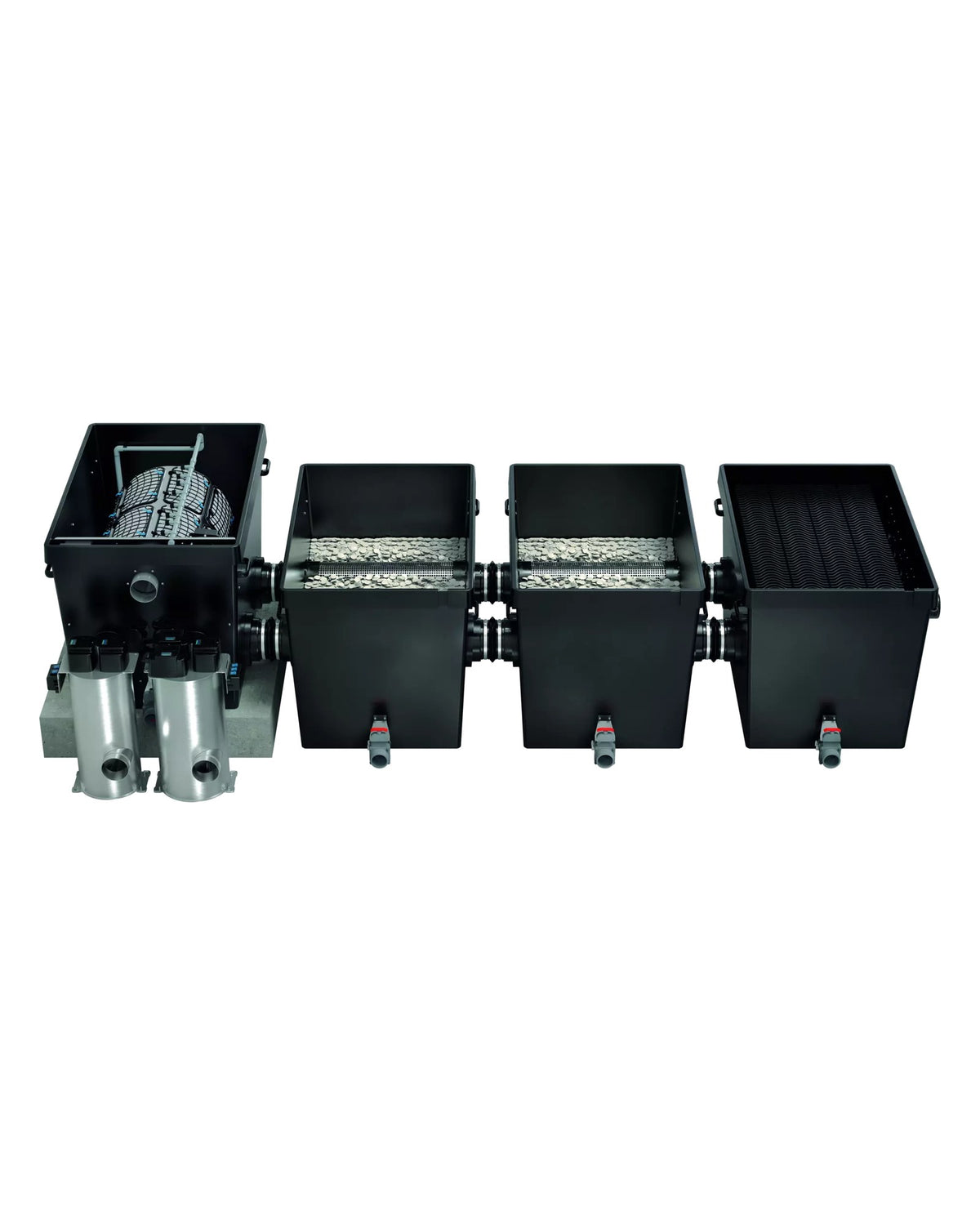

- Modularly combinable with other ProfiClear Premium XL components
- Robust construction made of duroplastic GRP and stainless steel

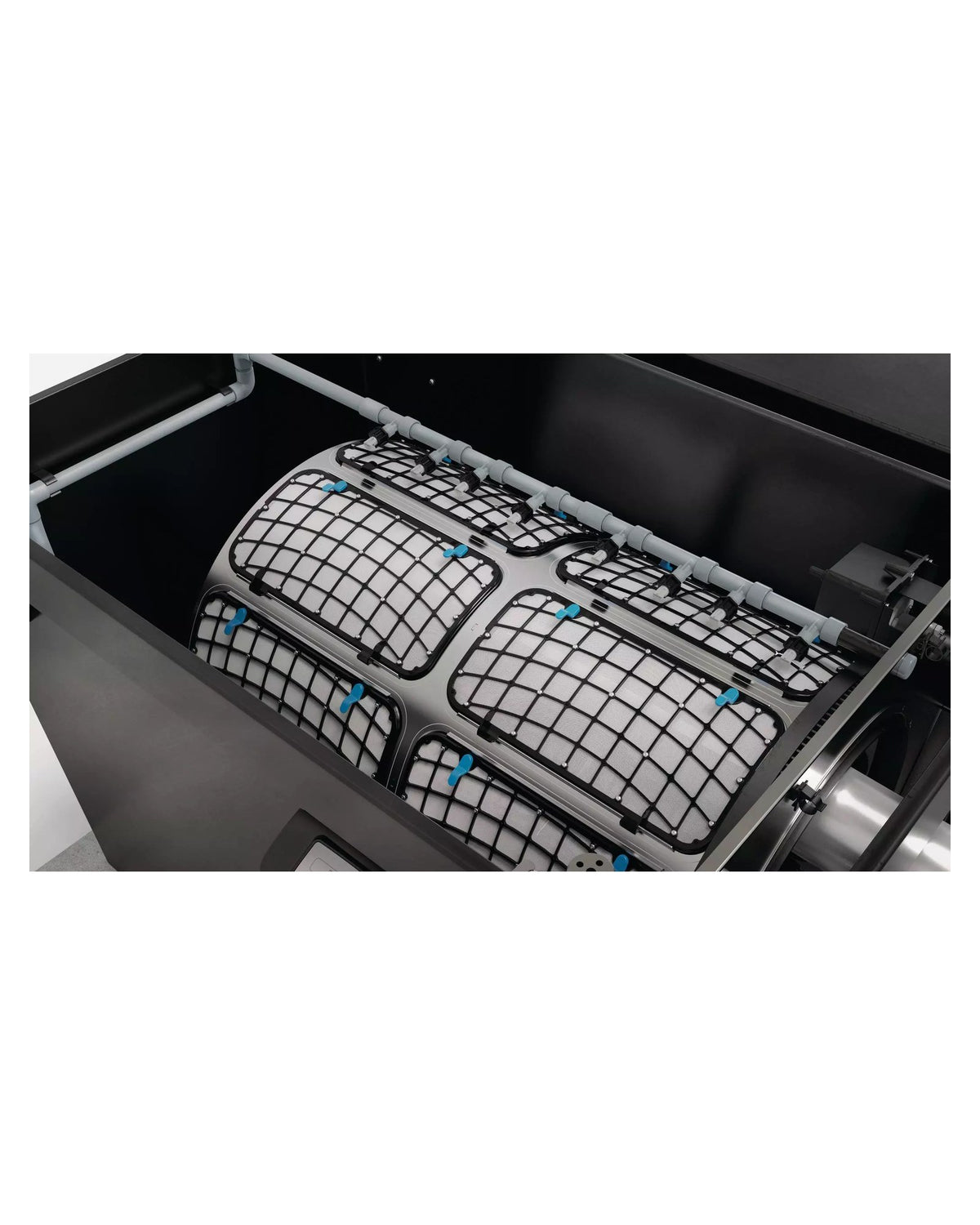

- Individually removable screen elements for easy maintenance
- Innovative and reliable professional technology "Made in Germany" – excluding pressure pump
Technical data
| Feature | Specification |
|---|---|
| Product dimensions (L × W × H) | 1,330 × 875 × 820 mm |
| Maximum flow rate | 50,000 l/h |
| Minimum flow rate | 25,000 l/h |
| Suitable for koi ponds up to | 100 m³ in the ProfiClear Premium XL system |
| Suitable for natural and swimming ponds up to | 530 m³ in the ProfiClear Premium XL system |
| Coarse dirt separation | 60 µm |
| Filter inlet surface area | 6,900 cm² |

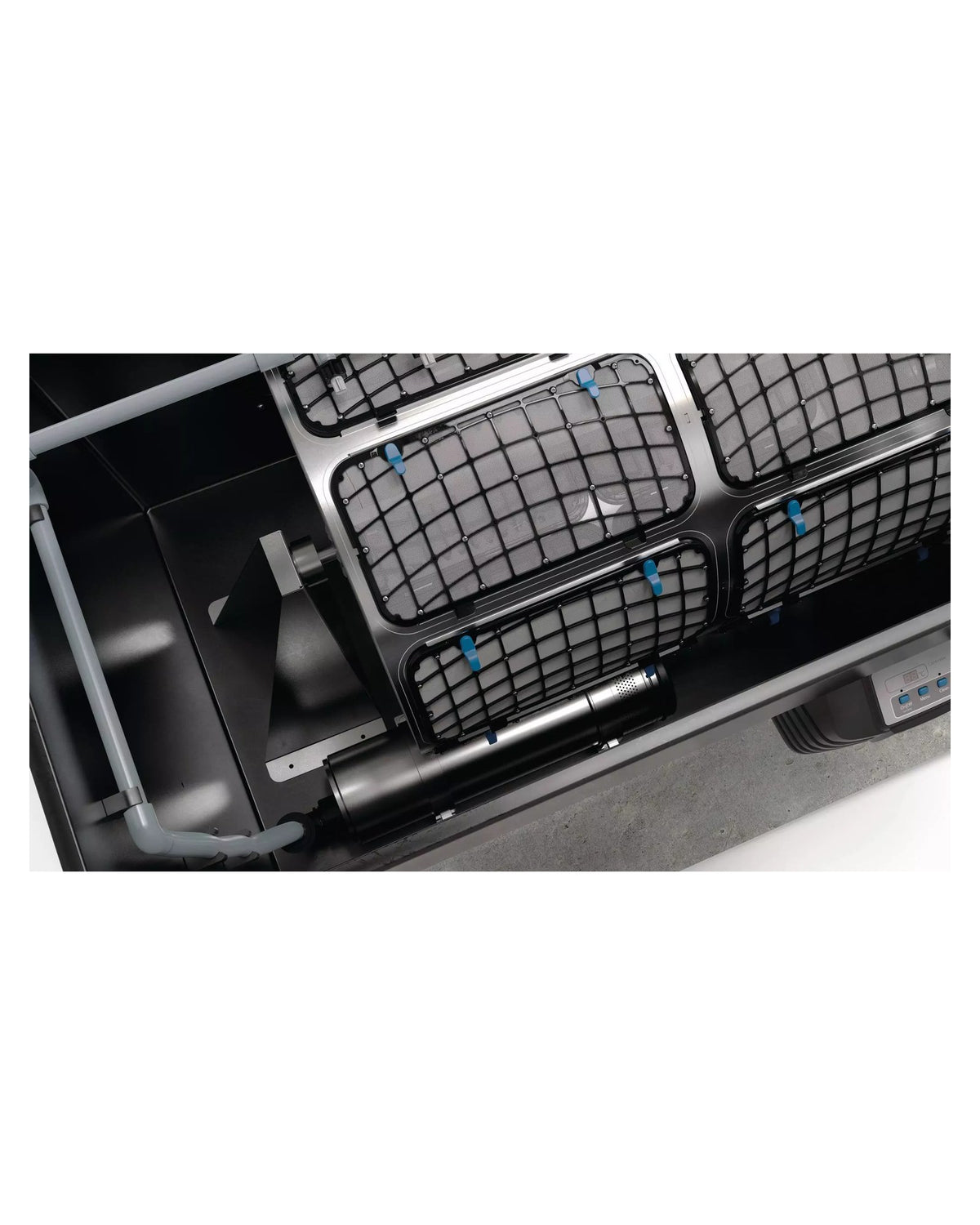

| Number of screen elements | 16 |
| Number of rinsing nozzles | 8 |
| Rinsing volume | 8 × 2.5 l/min |
| Rinsing pump | 7 bar |
| Automatic rinsing | Manual, sensor, or time interval |
| Number of inlets | 5 |

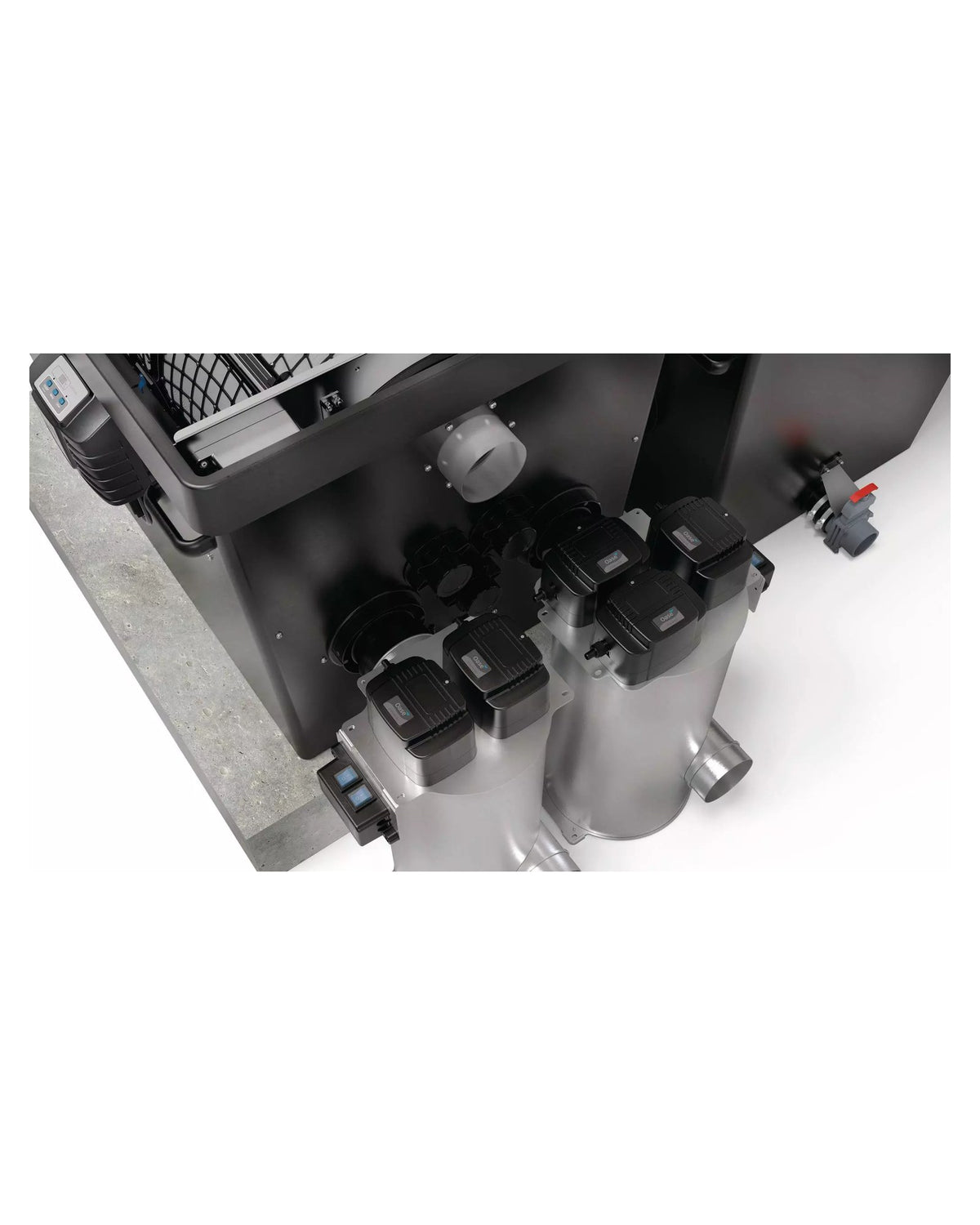

| Inlet connections | 3 × 2 inch / 2 × DN 110 |
| Number of outlets | 2 |
| Outlet connections | 180 mm |
| Dirt outlet | DN 75 |
| Rinsing gutter connection | DN 110 |
| Power consumption | 5 W |
| Power consumption during cleaning | 1,600 W |
| Material | Duroplastic GRP / stainless steel |
| Control unit | Microcontroller |
| Temperature display | Digital |
| Installation height above water level | 52 cm |

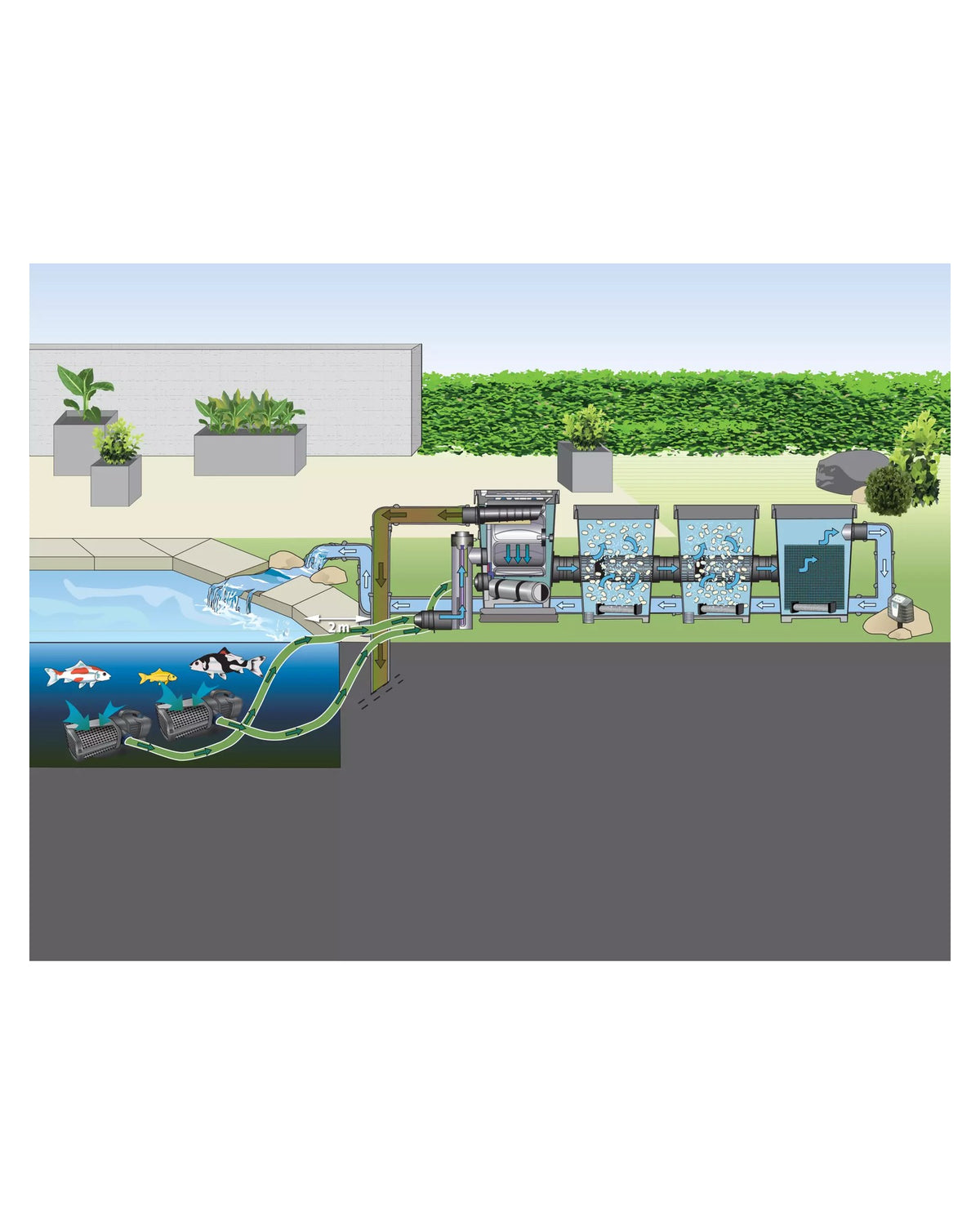

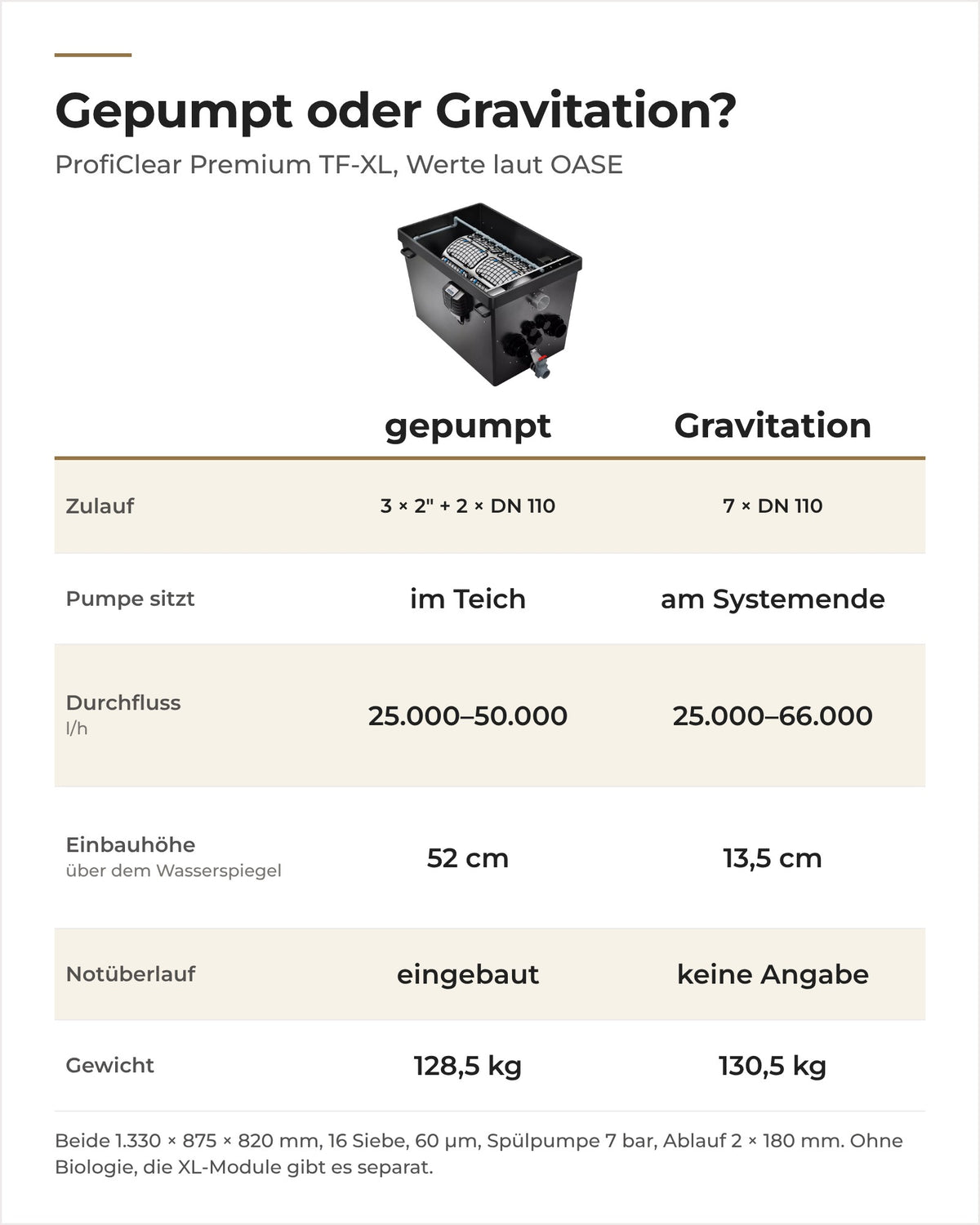

| Operating mode | Pumped system |
| Net weight | 128.5 kg |
| Warranty | 2 + 1 years |
| Article number | 73365 |
Article number : 73365
