Product description

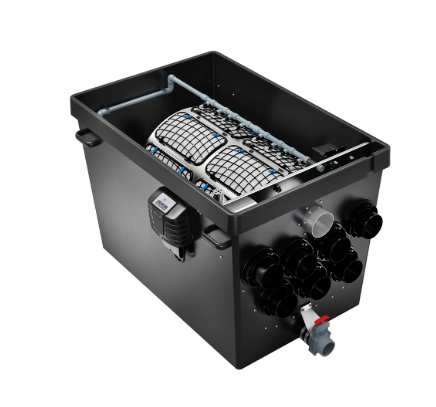

OASE ProfiClear Premium TF-XL Gravitation OC Drum Filter up to 100 m³



The OASE ProfiClear Premium TF-XL Gravitation OC is a high-performance, self-cleaning drum filter for large and demanding pond systems. As a mechanical filter module of the ProfiClear Premium XL system, it reliably removes fine dirt particles down to 60 µm from the pond water. The maximum water flow rate is 66,000 liters per hour. Within a suitably configured filter system, it is suitable for koi ponds up to 100 m³ as well as natural and swimming ponds up to 530 m³. The automatic cleaning can be performed via sensor, time interval, or manually. Thanks to OASE Control, the digital temperature display, and seven DN 110 inlets, the drum filter is easy to control and can be flexibly integrated into high-performance gravity filter systems.



Who it is for

🐟 Koi pond owners with ponds up to 100 m³
🌿 Operators of large natural and swimming ponds up to 530 m³
💧 Users with a gravity filter system
⚙️ Pond systems with particularly high flow requirements
🏡 Demanding private and professional pond installations
📱 Users of convenient OASE Control technology



The stated pond sizes apply to a complete and correctly configured ProfiClear Premium XL filter system.


Benefits at a glance

  • Automatic drum filter cleaning
  • Fine dirt separation down to 60 µm
  • High flow rate up to 66,000 l/h
  • Seven high-performance DN 110 inlets
  • Digital temperature display
  • Convenient OASE Control system



Technical Data

Feature Specification
Dimensions L × W × H 1,330 × 875 × 820 mm
Maximum flow rate 66,000 l/h
Minimum flow rate 25,000 l/h
Suitable for koi ponds up to 100 m³ in the ProfiClear Premium XL system
Suitable for natural/swimming ponds up to 530 m³ in the ProfiClear Premium XL system
Dirt separation 60 µm
Number of sieve elements 16
Filter inlet surface area 6,900 cm²
Number of nozzles / rinse volume 8 × 2.5 l/min
Rinse pump 7 bar
Automatic cleaning Manual, sensor, or time interval
Number of inlets 7
Inlet connections DN 110
Number of outlets 2
Outlet connections 180 mm
Dirt outlet DN 75
Rinse channel connection DN 110
Power consumption 5 W
Power consumption during cleaning 1,600 W
Cable length 5.00 + 5.00 m
Material GRP Duroplast / stainless steel
Control unit Microcontroller
Temperature display Digital
Installation height above water level 13.5 cm
Possible water level difference −20 mm
Operating mode Gravity
Net weight 130.5 kg
Warranty 2 + 1 years



Item number: 73363

Technical specifications
At a glance

Self-cleaning pumped drum filter, up to 50,000 l/h, debris separation down to 60 µm, integrated emergency overflow, digital temperature display, and OASE Control system.

Dimensions
1,330 × 875 × 820 mm – length × width × height
Application and Dosage
Application
For pumped filter systems in large natural ponds, swimming ponds, and koi ponds. Suitable for natural and swimming ponds up to 530 m³ and for koi ponds up to 100 m³ when used within a properly configured ProfiClear Premium XL filter system.
